Technical Range
Inventory for Instrumentation Valves
Needle Valves
Technical Specifications
Size
1/8" to 2"
Materials
SS316 Body, Stem & Needle (SS304, CS, Brass available)
Packing/Seat
PTFE / Graphite Packing; PTFE / Metal-to-Metal Seat
Pressure
6,000 psi standard (Up to 15,000 psi optional)
Temperature
-40°C to +230°C (PTFE) / +450°C+ (Graphite)
Connections
NPT, BSP, ISO, Weld, Flanged
Standards
ASME B16.34, API 598, ASME B1.20.1
1.1

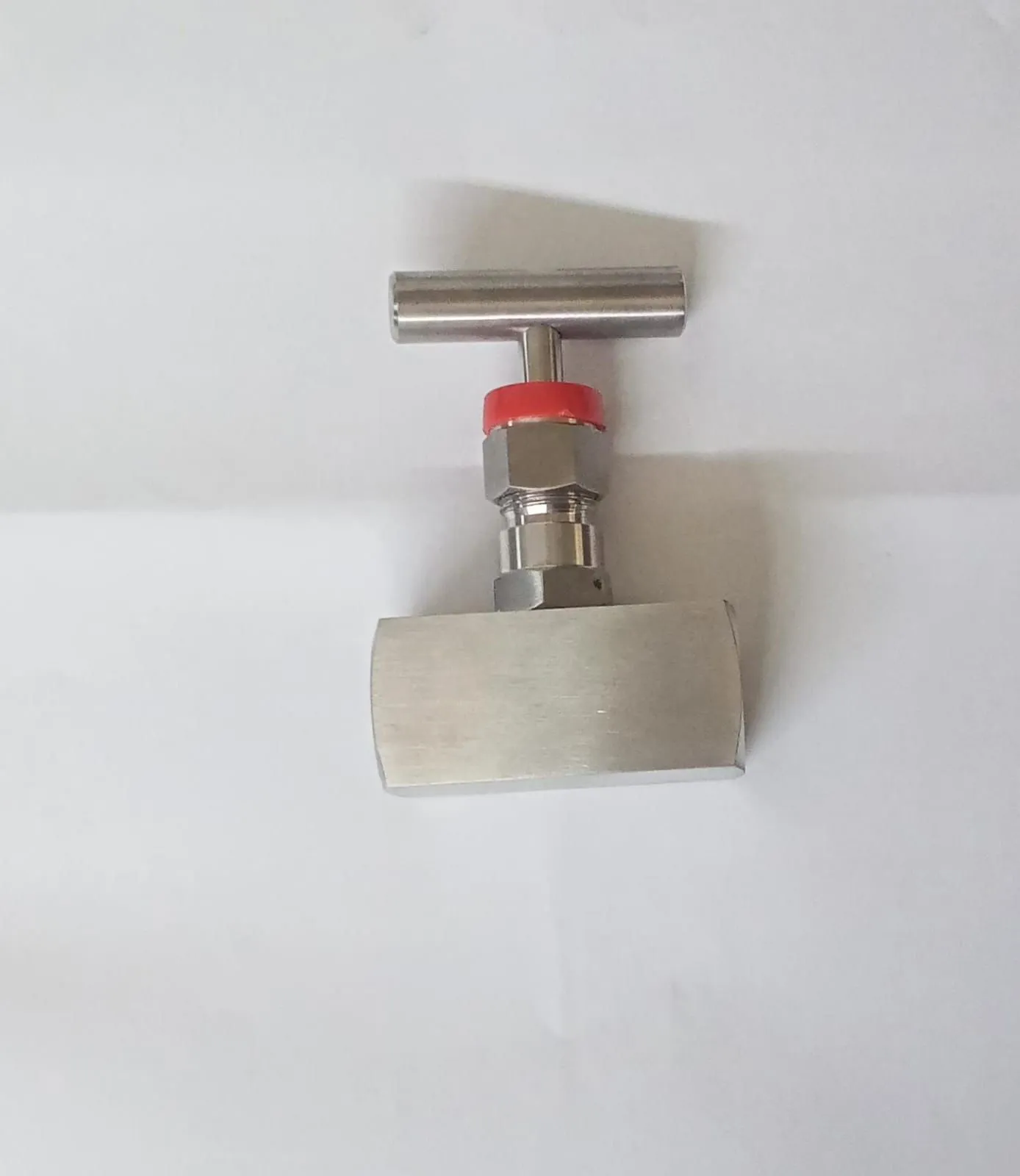

Needle Valve (Female x Female)
ASTM SS 316REF: PFS-IN
1.2

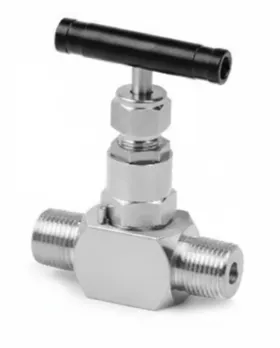

Needle Valve (male x Male)
ASTM SS 316REF: PFS-IN
1.3

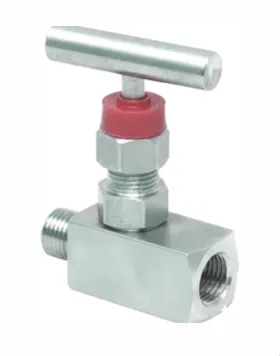

Needle Valve (Female x Male)
ASTM SS 316REF: PFS-IN
1.4

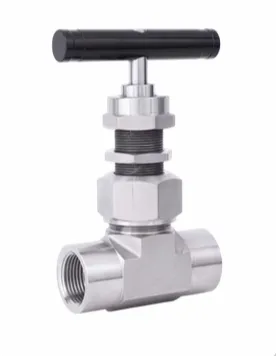

Panel Mount Needle Valve (Female x Female)
ASTM SS 316REF: PFS-IN
1.5

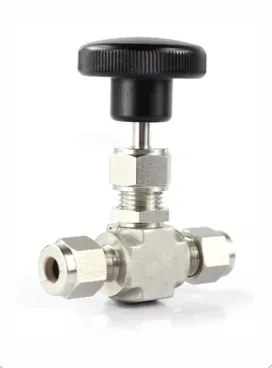

Panel Mount Needle Valve (OD x OD)
ASTM SS 316REF: PFS-IN
1.6

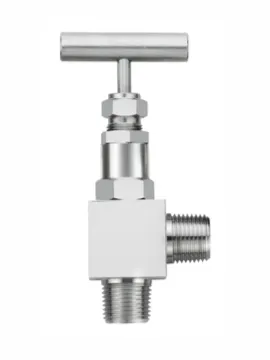

Angle Type Needle Valve (Male x Male)
ASTM SS 316REF: PFS-IN
Ball Valves
Technical Specifications
Size
1/8" to 2"
Body Material
SS304 / SS316 / Carbon Steel / Brass / Monel / Hastelloy
Stem/Needle
SS316
Packing
PTFE / Graphite
Seat
PTFE / Metal-to-Metal
Pressure
Up to 6,000 psi standard (up to 15,000 psi optional)
Temperature
-40 °C to +230 °C (PTFE) / +450 °C+ (graphite)
End Connections
NPT, BSP, ISO, Weld, Flanged
Standards
ASME B16.34, API 598, ASME B1.20.1
2.1
Hex Body Ball Valve (Female x Female)
ASTM SS 316REF: PFS-IN
2.2
Round Body Ball Valve (Female x Female)
ASTM SS 316REF: PFS-IN
2.3
Square Body Ball Valve (Female x Female)
ASTM SS 316REF: PFS-IN
2.4
High Pressure Ball Valve (Female x Female)
ASTM SS 316REF: PFS-IN
2.5
2 Way Panel Mount Ball Valve (Female x Female)
ASTM SS 316REF: PFS-IN
2.6
2 Way Panel Mount Ball Valve (OD x OD)
ASTM SS 316REF: PFS-IN
2.7
3 Way Panel Mount Ball Valve (Female x Female)
ASTM SS 316REF: PFS-IN
2.8
3 Way Panel Mount Ball Valve (OD x OD)
ASTM SS 316REF: PFS-IN
Check Valves (NRV)
Technical Specifications
Maximum Working Pressure
Up to 10,000 psi (689 bar)
Working Temperature
-10°F(-23°C) to 395°F(200°C) With Viton 'O' Ring
Body Material
SS304L / SS316L / Monel / Hastelloy / Inconel / Duplex
Size
• 1/4" ~ 2" Pipe Thread • 3 ~ 25 mm OD • 1/8" ~ 1" OD
Leak Testing
Leak-tight performance tested for every valve with nitrogen / air at maximum working pressure
Testing
100% Factory Tested
Mounting
Panel Mountable (Optional)
Operating Torque
Low Operating Torque
Design
• Floating Ball Design for Positive Sealing
• Compact Design • Single Piece & Three Piece Design
Configuration
2 Way / 3 Way / 5 Way
Material Traceability
Available
3.1
Check Valve (Female x Female)
ASTM SS 316REF: PFS-IN
3.2
Check Valve (NPT Male x Male)
ASTM SS 316REF: PFS-IN
3.3
Check Valve (Inch OD Tubes)
ASTM SS 316REF: PFS-IN
3.4
Check Valve (Female x Male)
ASTM SS 316REF: PFS-IN
Safety Relief Valves
Technical Specifications
Maximum Working Pressure
Up to 6,000 psi (414 bar)
Set Pressure Range
10 to 6,000 psi (3.4 to 414 bar)
Working Temperature
-10°F (-30°C) to 392°F (200°C)
Body Material
SS304L / SS316L / Monel / Hastelloy / Inconel / Duplex
Thread Type
NPT / BSPT / ISO / SAE
Size
• 1/8” ~ 2” Pipe Thread • 3 ~ 25 mm OD • 1/8” ~ 1” OD
Spring System
Multiple Springs For Wide Range Of Set Pressure
Adjustment
Easy External Pressure Adjustment • Label Identifies Set Pressure Range
Testing
100% Factory Tested
Material Traceability
Available
4.1
Male x Female Threaded 6000 psi
ASTM SS 316REF: PFS-IN
4.2
Male x Tube OD 6000 psi
ASTM SS 316REF: PFS-IN
4.3
OD x OD 6000 psi
ASTM SS 316REF: PFS-IN
4.4
Check Valve (Female x Male)
ASTM SS 316REF: PFS-IN
4.5
Female Threaded 6000 psi
ASTM SS 316REF: PFS-IN
Monoflanges Valves
Technical Specifications
Max. Working Pressure
Up to 6,000 psi (414 bar)
Temperature
• –65°F (–54°C) to 464°F (240°C) with PTFE Packing
• –65°F (–54°C) to 842°F (450°C) with Graphite Packing
Material
SS304L / SS316L / Monel / Hastelloy / Inconel / Duplex
Connection / Mounting
• Pipe to Pipe • Pipe to Flange • Flange to Flange • Remote
• Remote Mounting Base • Vent / Direct / Integral Mounting
Design Features
• Standard Non-Rotating Trim • Low Operating Torque • One-Piece High-Strength Bar
Testing
100% Factory Tested
Traceability
Material Traceability Available
5.1

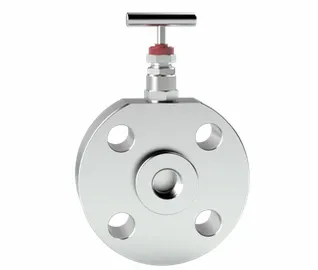

monoflange-valve-1
ASTM SS 316REF: PFS-IN
5.2

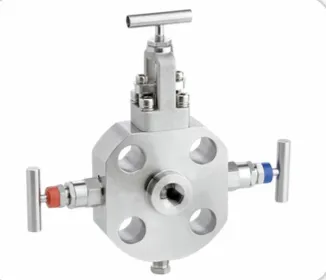

monoflange-valve-2
ASTM SS 316REF: PFS-IN
5.3

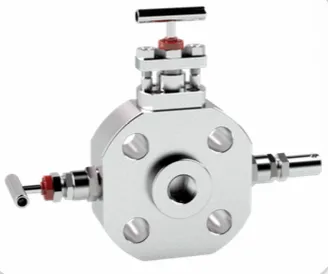

monoflange-valve-3
ASTM SS 316REF: PFS-IN
Manifold Valves
Technical Specifications
Max. Working Pressure
Up to 10,000 psi (414 bar)
Temperature
• –65°F (–54°C) to 464°F (240°C) with PTFE Packing
• –65°F (–54°C) to 842°F (450°C) with Graphite Packing
Material
SS304L / SS316L / Monel / Hastelloy / Inconel / Duplex
Connection / Mounting
• Pipe to Pipe • Pipe to Flange • Flange to Flange • Remote
Design Features
• Remote Mounting Base • Vent / Direct / Integral Mounting • Standard Non-Rotating Trim • Low Operating Torque • One-Piece High-Strength Bar Stock & Forged Body
Testing
100% Factory Tested
Traceability
Material Traceability Available
6.1

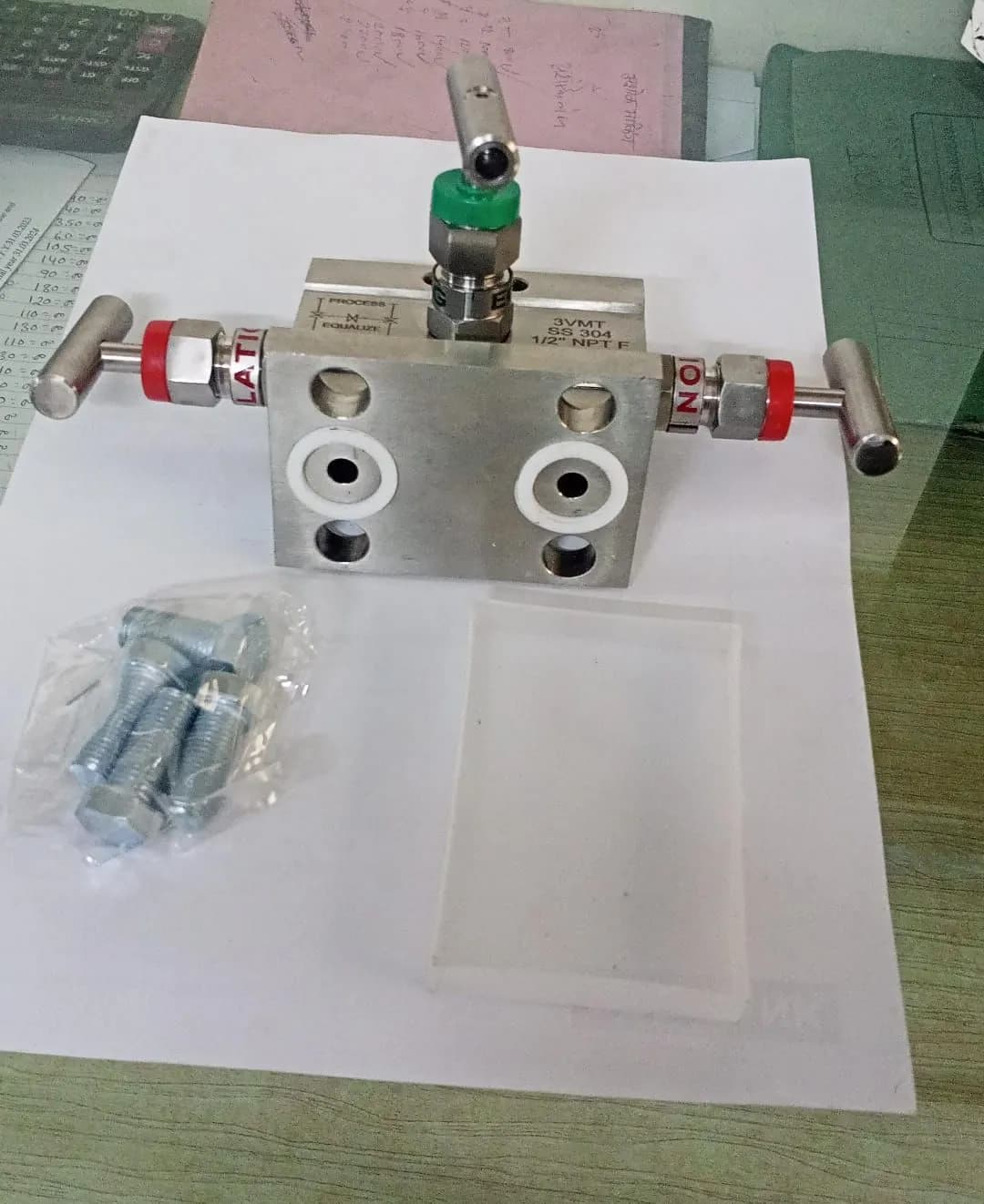

Manifold valve 1
ASTM SS 316REF: PFS-IN
6.2

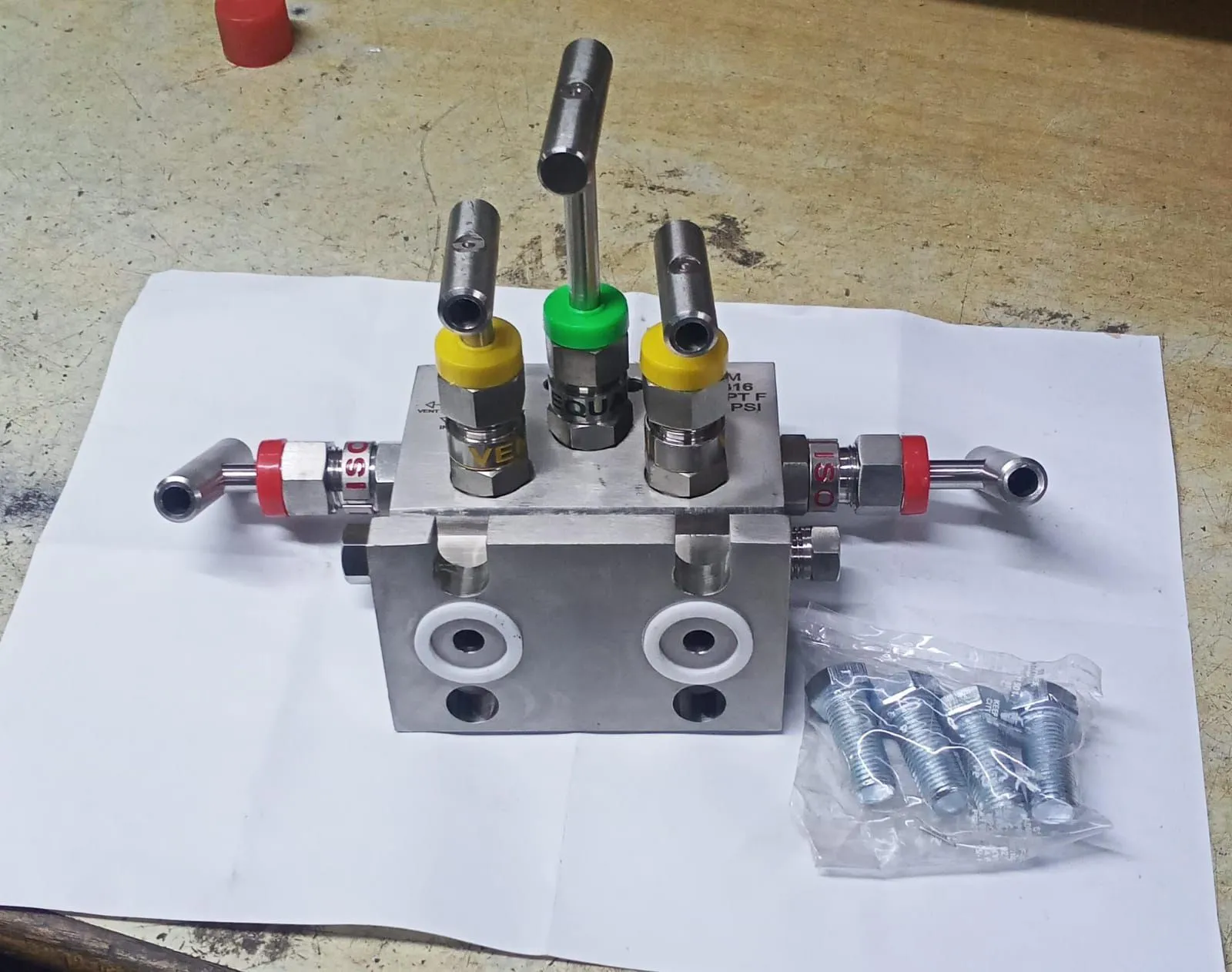

Manifold valve 2
ASTM SS 316REF: PFS-IN
6.3

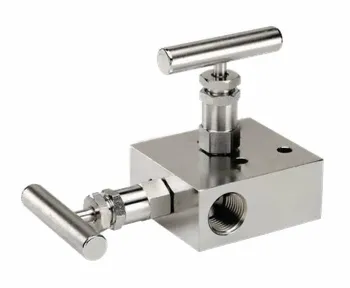

Manifold Valve (2 Way)
ASTM SS 316REF: PFS-IN
6.4

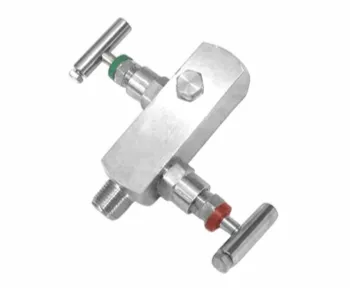

Double Block & Bleed Gauge Valves
ASTM SS 316REF: PFS-IN
6.5

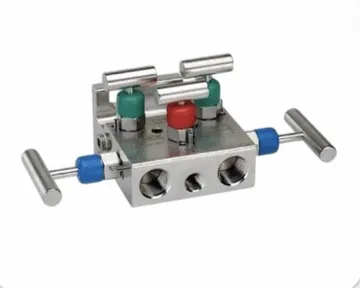

5 Way T Type Manifold Valve
ASTM SS 316REF: PFS-IN
Standard Components
1
Globe Valve
ASTM SS 316REF: PFS-IN
2
Gate Valve
ASTM SS 316REF: PFS-IN
