Technical Range
Inventory for Specialized Equipment
Condesate Pots
Technical Specifications
Material
SS304L / SS316L / Monel / Hastelloy / Inconel / Duplex
Design
• Small, thin & lightweight design
• Allows combination with other valves in series for safe shutoff
End Connection
NPT / SW as per ANSI B2.1 & ANSI B16.11
Wall Thickness
Schedule 40 / 80 / 160
Max. Working Pressure
Up to 10,000 psi (689 bar)
Size
1/2” ~ 2”
Port Configuration
2 Port / 4 Port / 6 Port / 8 Port / 10 Port
Testing
• 100% Factory Tested • 100% Radiography of Pipe Joints
Traceability
Material Traceability Available
1.1
condesate-pots
ASTM SS 316REF: PFS-SP
Air Header
Technical Specifications
Material
SS304L / SS316L / Monel / Hastelloy / Inconel / Duplex
Fabrication Standard
Fabrication as per ASME Sec VIII Div 1 (ED)
Design Features
• Small, thin & lightweight design
• Allows combination with other valves in series for safe shutoff
End Connections
• Threaded • Flanged • Socket Weld
• As per ANSI B2.1 & ANSI B16.11
Wall Thickness
Schedule 40 / 80 / 160
Max. Working Pressure
Up to 10,000 psi (689 bar)
Size Range
1/2” ~ 2”
Port Configuration
2 Port / 4 Port / 6 Port / 8 Port / 10 Port
Testing
• 100% Factory Tested
• 100% Radiography of Pipe Joints
Traceability
Material Traceability Available
2.1

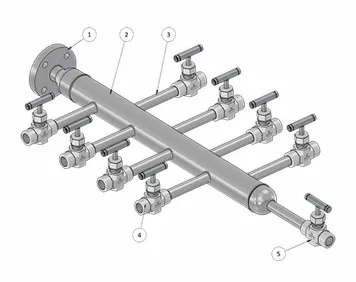

8 Way Air Header With Needle Valves
ASTM SS 316REF: PFS-SP
2.2

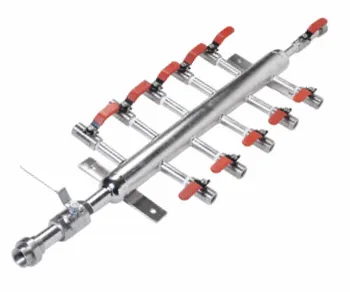

10 Way Air Header With Ball Valves
ASTM SS 316REF: PFS-SP
2.3

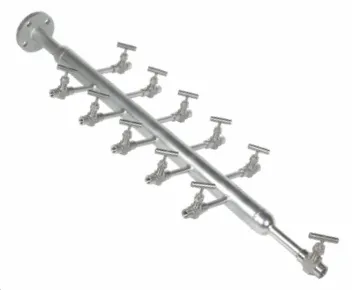

10 Way Air Header With Needle Valves
ASTM SS 316REF: PFS-SP
Standard Components
1

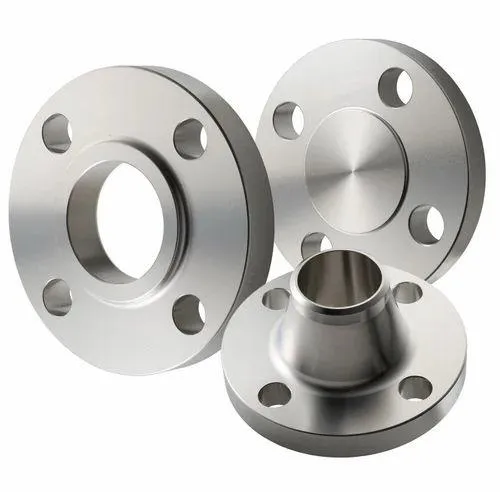

Flanges
ASTM SS 316REF: PFS-SP
